ESA PADRE Analysis Results

DRA / SRA

Test case: Example SAMj Controlled Component-Centric Vehicle Re-entry

Demonstration of the PADRE spacecraft assessment mode. This analysis simulated the destructive re-entry of a 1000kg component-centric vehicle, modelled as a relatively simple structore comprising approximately 40 components. Re-entry is predicted from a circular sun-synchronous orbit of 130km altitude using SAMj. Uncertainties in the initial state vector, atmosphere density, material properties, drag and heating coefficients are considered. A standard Monte-Carlo of between 1000 simulations has been executed.

Status

• Analysis started: 2025-08-05 16:29:45
• Last updated: 2025-08-05 16:30:07
• Elapsed time: 21 secs

Overall DRA / SRA

Impact points (download)

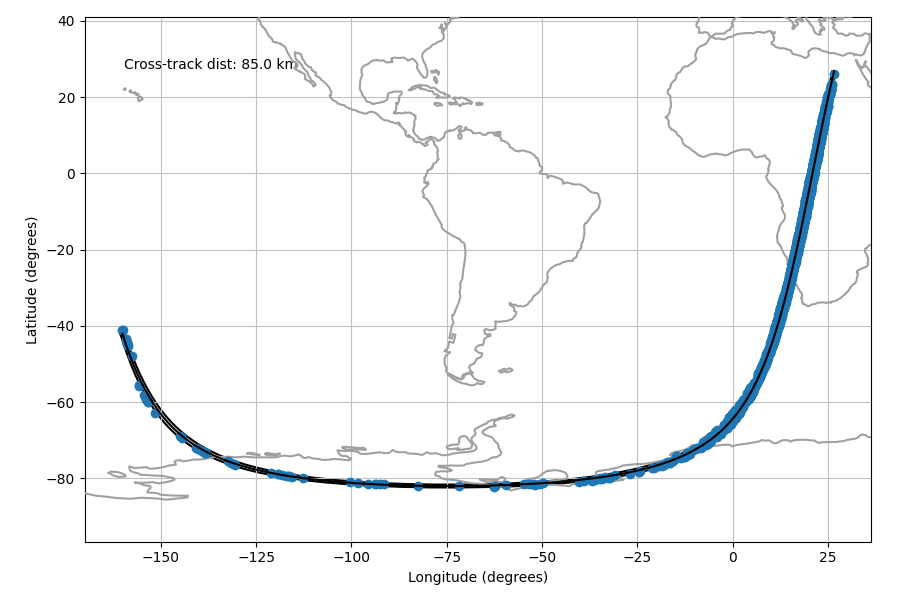

Declared Re-entry Area

Full DRA cross-track distance: 85.0 km
DRA data (download)

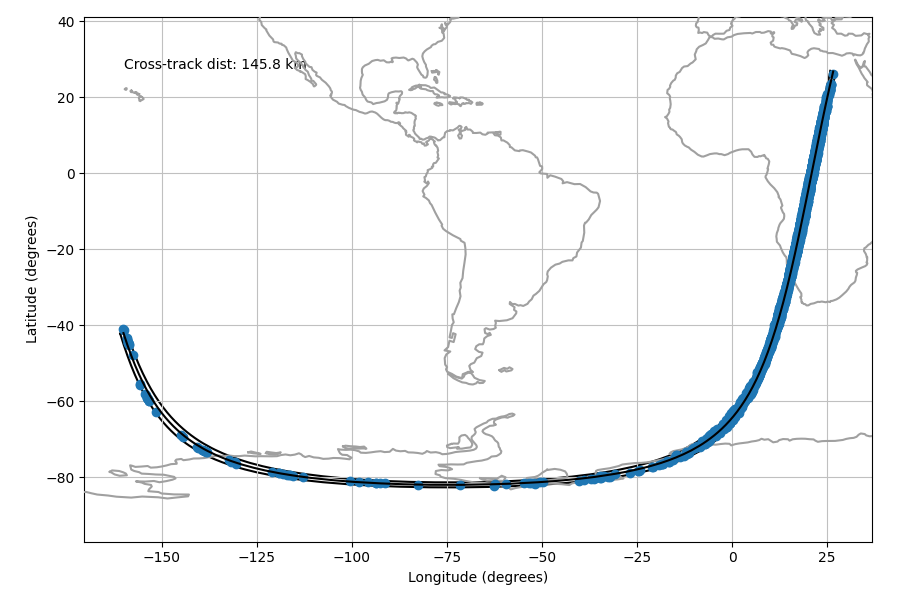

Safety Re-entry Area

Full SRA cross-track distance: 145.8 km
SRA data (download)
