Test case: PADRE Steel Reaction Wheel Component Mode Test Case

Demonstration of the PADRE component assessment mode. This analysis considers a component-centric MADRE 5 spoke reaction wheel model with a steel flywheel. Re-entry is predicted from a circular orbit from 130km altitude using the MADRE version of SESAM. This is enhanced over the current DRAMA 3.0.4 with the inclusion of support for ring primitives, material catalycity and automatic scaling of voxel size. Orbital inclination is selected randomly from a uniform distribution across the full range. An undemisable parent vehicle with a ballistic coefficient randomly selected in the range 50kg/m^2 to 200kg/m^2 is chosen and propagated to a release altitude of between 50km and 100km, at this point the child sub-assembly is released and its various components are propagated to demise or impact. Normal PADRE uncertainties on material properties, heating, drag and atmospheric densities are also applied. A standard Monte-Carlo analysis of 5000 simulations has been executed.

Status

Analysis started: 2021-10-20 12:54:15
Last updated: 2021-10-20 14:08:19
Simulation count: 5000
Batch count: 10
Results converged: True
Elapsed time: 4443 secs
Analysis complete: True

Configuration

Analysis Configuration: View / Download
Uncertainties configuration: View / Download
Console Log: View / Download

Description

The following plots show results for the aggregate of all fragments within each simulation. Data in the left column describes the results for all simulations, including any where no fragments that pose a casualty risk impact the ground. The right column only shows results for those simulations where at least one fragment that generates a casualty risk impacts the ground

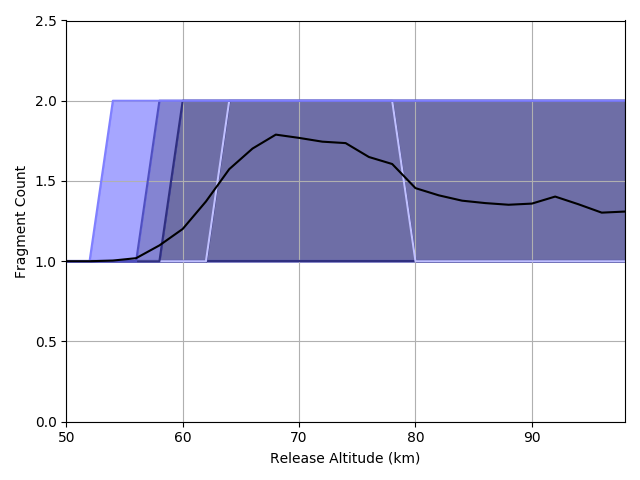

Fragment Count

Profile of the number of impacting fragments as a function of release altitude.

All Simulations	Risk Generating Simulations

Plot Data: View / Download	Plot Data: View / Download

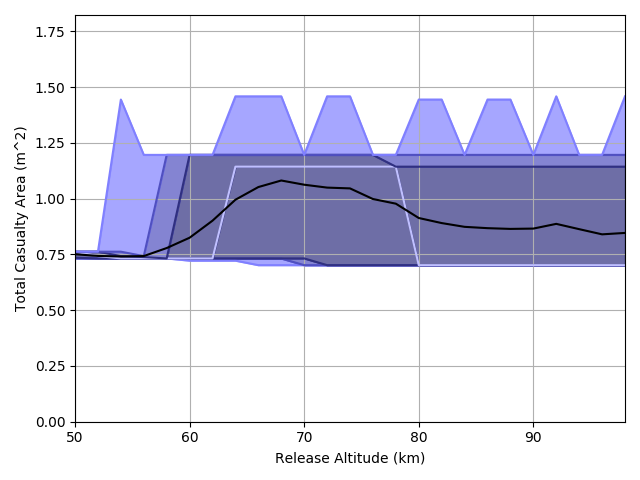

Total Casualty Area

Profile of the total casualty area resulting from all fragments as a function of release altitude.

All Simulations	Risk Generating Simulations

Plot Data: View / Download	Plot Data: View / Download

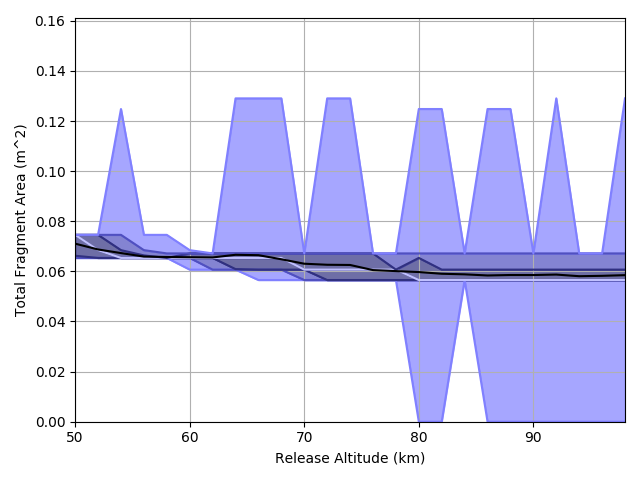

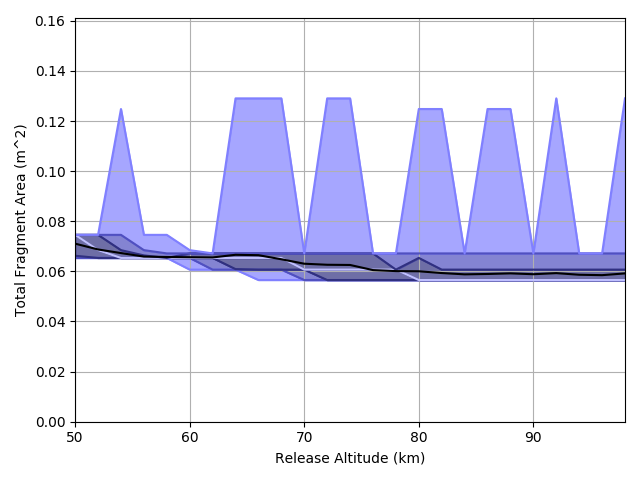

Total Fragment Area

Profile of the total fragment area resulting from all fragments as a function of release altitude.

All Simulations	Risk Generating Simulations

Plot Data: View / Download	Plot Data: View / Download

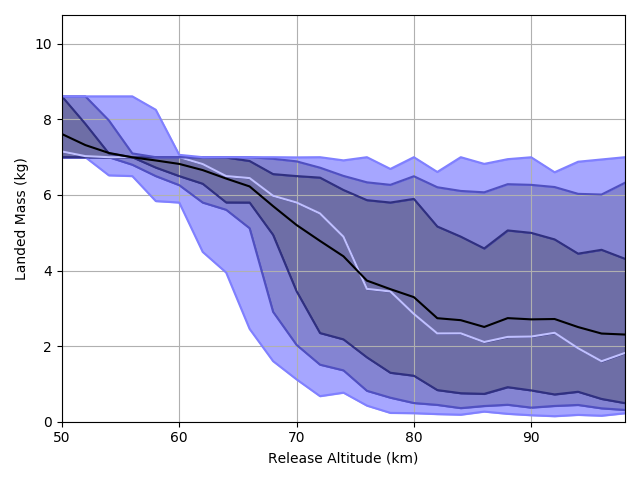

Total Landed Mass

Profile of the total landed mass resulting from all fragments as a function of release altitude.

All Simulations	Risk Generating Simulations

Plot Data: View / Download	Plot Data: View / Download
